Square Scrub PIVOT, 20" Orbital Floor Machine, 1.5 HP, 3 Year Warranty
Square Scrub PIVOT, 20" Orbital Floor Machine, 1.5 HP, 3 Year Warranty
Square Scrub PIVOT, 20" Orbital Floor Machine, 1.5 HP, 3 Year Warranty
Square Scrub PIVOT, 20" Orbital Floor Machine, 1.5 HP, 3 Year Warranty

Square Scrub PIVOT, 20" Orbital Floor Machine, 1.5 HP, 3 Year Warranty

$5,080.00 - $6,042.00
Configuration

Get a Formal Quote

Model # Configuration

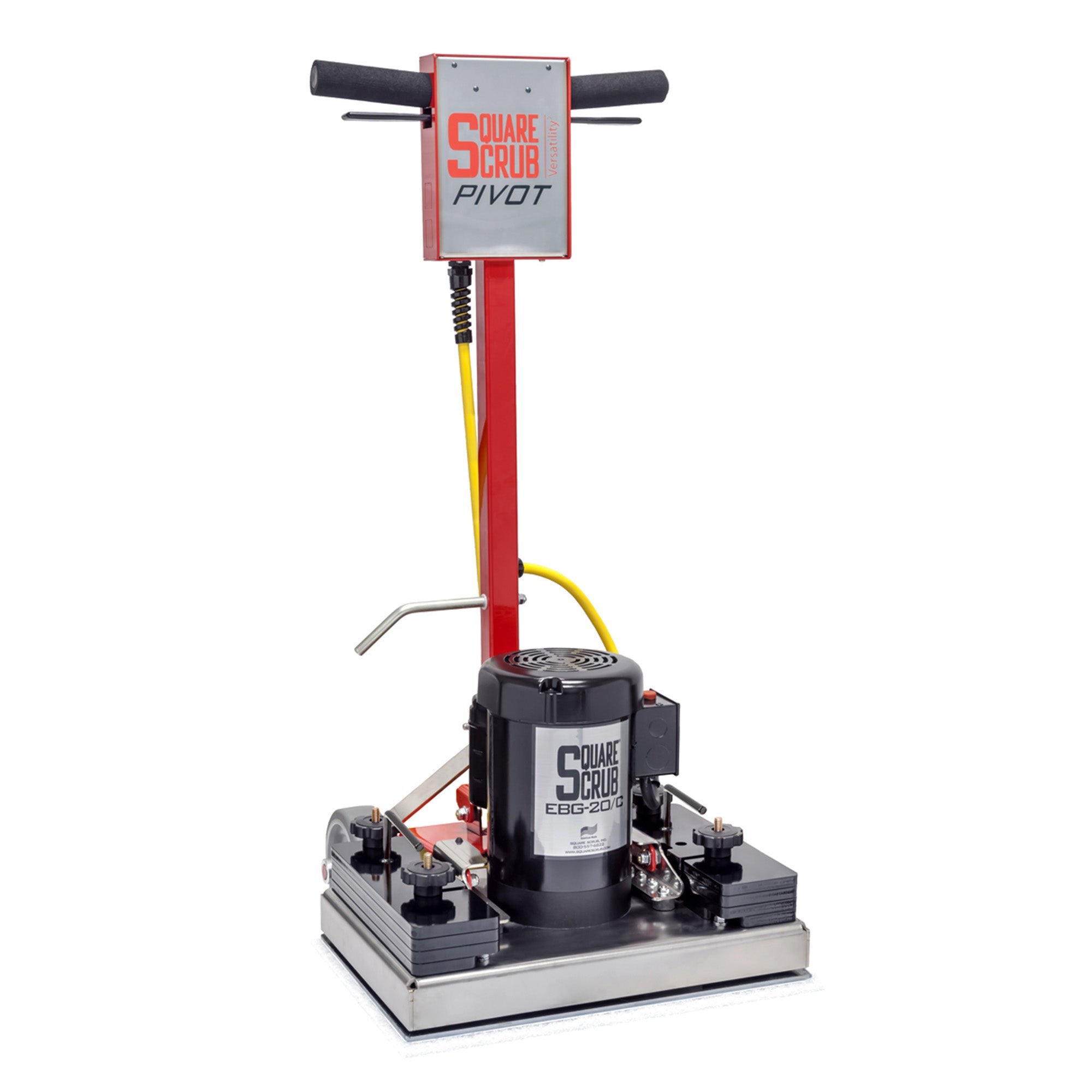

SS EBG-20C PIVOT EBG-20C PIVOT Floor Preparation Machine
SS EBG-20C PVT 2PC EBG-20C PIVOT with Removable Handle
SS EBG-20CV PIVOT EBG-20C PIVOT with HEPA Vac
SS EBG-20CV PVT 2PC EBG-20C PIVOT with Removable Handle & HEPA Vac
Product Highlights
  • 20" orbital cleaning path with innovative pivoting head for balanced floor contact.
  • Powerful 1.5 hp motor delivers 3,450 oscillations per minute for aggressive scrubbing and stripping.
  • Chemical-free stripping capability saves money and reduces environmental impact.
  • Removable slotted weights allow customized pressure for different floor types.
  • Heavy-duty 10-gauge powder coated steel frame with 7-gauge stainless steel base.
  • Optional HEPA Dry Vac Kit and removable two-piece handle configurations available.
Key Features
  • Pivoting Head Technology: Head releases from base allowing free front-to-back movement for nearly perfect surface contact on uneven floors.
  • Near-Perfect Balance: Balanced weight distribution front-to-back and side-to-side for easier maneuverability and uniform cleaning results.
  • Removable Slotted Weights: Easily add weight for stone polishing or hardwood sanding, then remove for lighter cleaning tasks.
  • Low Vibration Design: Four low-profile isolators mounted on the pivoting base eliminate nearly all vibration felt by the operator.
  • Chemical-Free Stripping: Use dry with specialty pads to strip floors without chemicals or messy slurry.
  • 7-Gauge Stainless Steel Base: Heavy-duty construction for demanding floor preparation jobs.
  • Adjustable Handle: Floating head design allows free handle adjustment without affecting floor pressure.
  • Robust Trigger Assembly: Steel guide pins ride in nylon bushings for smooth, reliable operation.
  • Quick Cord Wrap: Unwinds entire 50' cord with a quick twist to get to work faster.

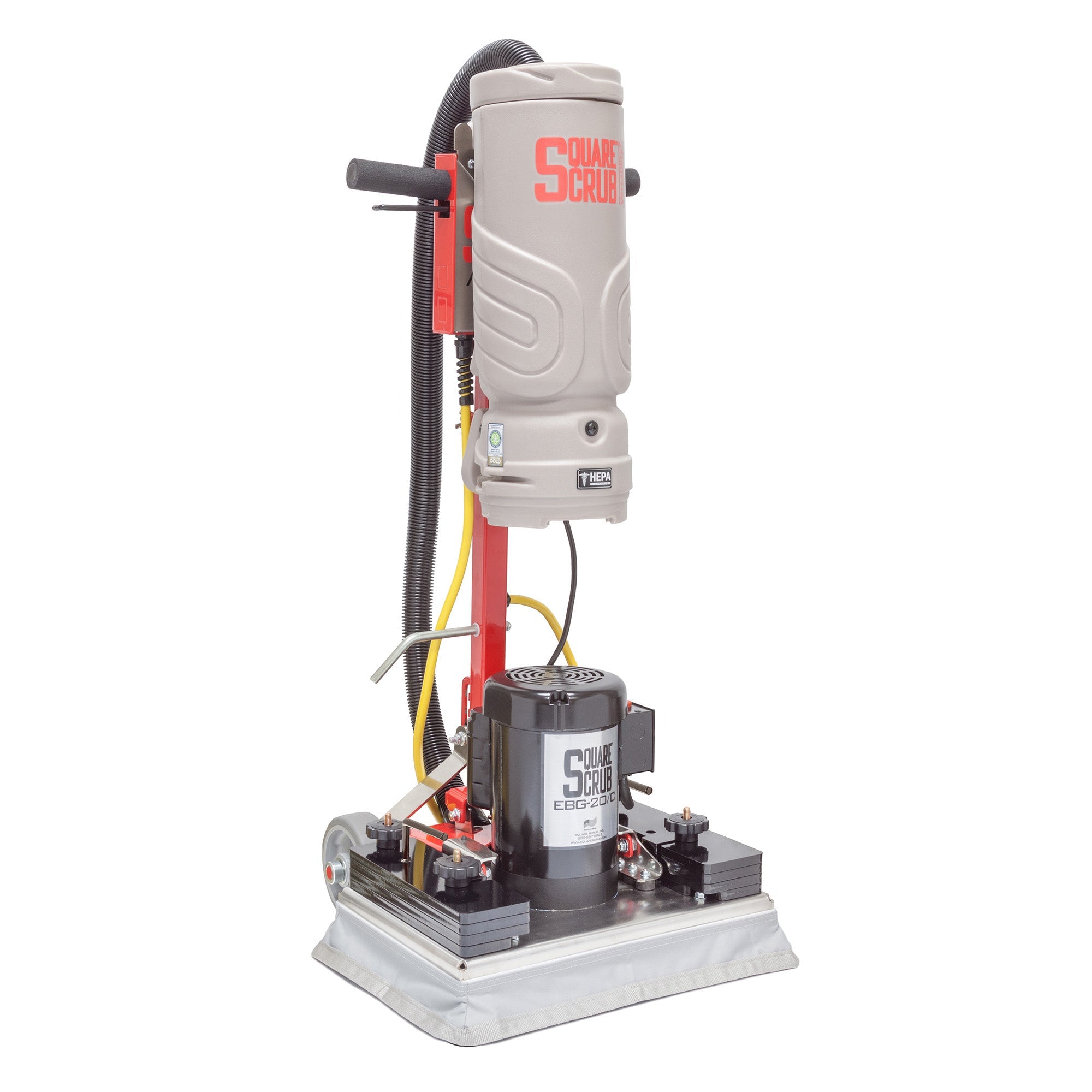

  • Optional HEPA Vac: CRI Gold Certified vacuum captures dust and airborne particulates during dry applications.
  • Stone Care Capable: Works with diamond pads for natural stone polishing and restoration.
  • Made in America: Quality-built in the USA for dependable performance.
Ideal Users
  • Schools, gymnasiums, and athletic facilities with wood floors.
  • Retail stores, offices, and commercial buildings with VCT.
  • Restaurants and food service with tile and grout floors.
  • Stone and marble restoration contractors.
  • Contract cleaners and floor care professionals.
Specifications
Cleaning Path 20 in (14 x 20 in pad)
Scrub Style Orbital
Motor Power 1.5 hp
Oscillations 3,450 per minute
Voltage 115V
Amperage 7 Amps
Power Cord 50 ft, 14 gauge with lighted plug
Frame Construction 10-gauge powder coated steel
Base Construction 7-gauge stainless steel
Transport Wheels 6 x 2 in non-marking, 3/4 in solid steel axle
Vibration Isolators 4
Sound Level 69 dB(A)
Base Weight (without weights) 106 lb
Total Assembled Weight 156 lb
Maximum Weight Capacity 232 lb
Certifications UL, CSA, CE
Warranty 3 years parts/labor, 5 years eccentric assembly
Compatible Floor Surfaces
  • VCT (vinyl composition tile) ā€” wet or dry
  • Wood floors and gymnasium floors
  • Tile and grout
  • Stone, marble, and terrazzo
  • Concrete
  • LVT (luxury vinyl tile)
  • Rubber flooring
  • Carpet (with encapsulation cleaning)
Included Accessories
  • 1/4" White Driver Pad (SS P1420DRIVER)
  • Dust Containment Kit
  • Removable Slotted Weight Plates
  • 50' Power Cord with Lighted Plug
  • HEPA Dry Vac Kit (EBG-20CV models only)
Download Resources

Machine Fitment

Machine Compatibility

This part is listed as fitting the following models:

Square Scrub Floor Machines & Parts - Tile & Grout Pads

Square Scrub Floor Machines & Parts - Tile & Grout Pads
