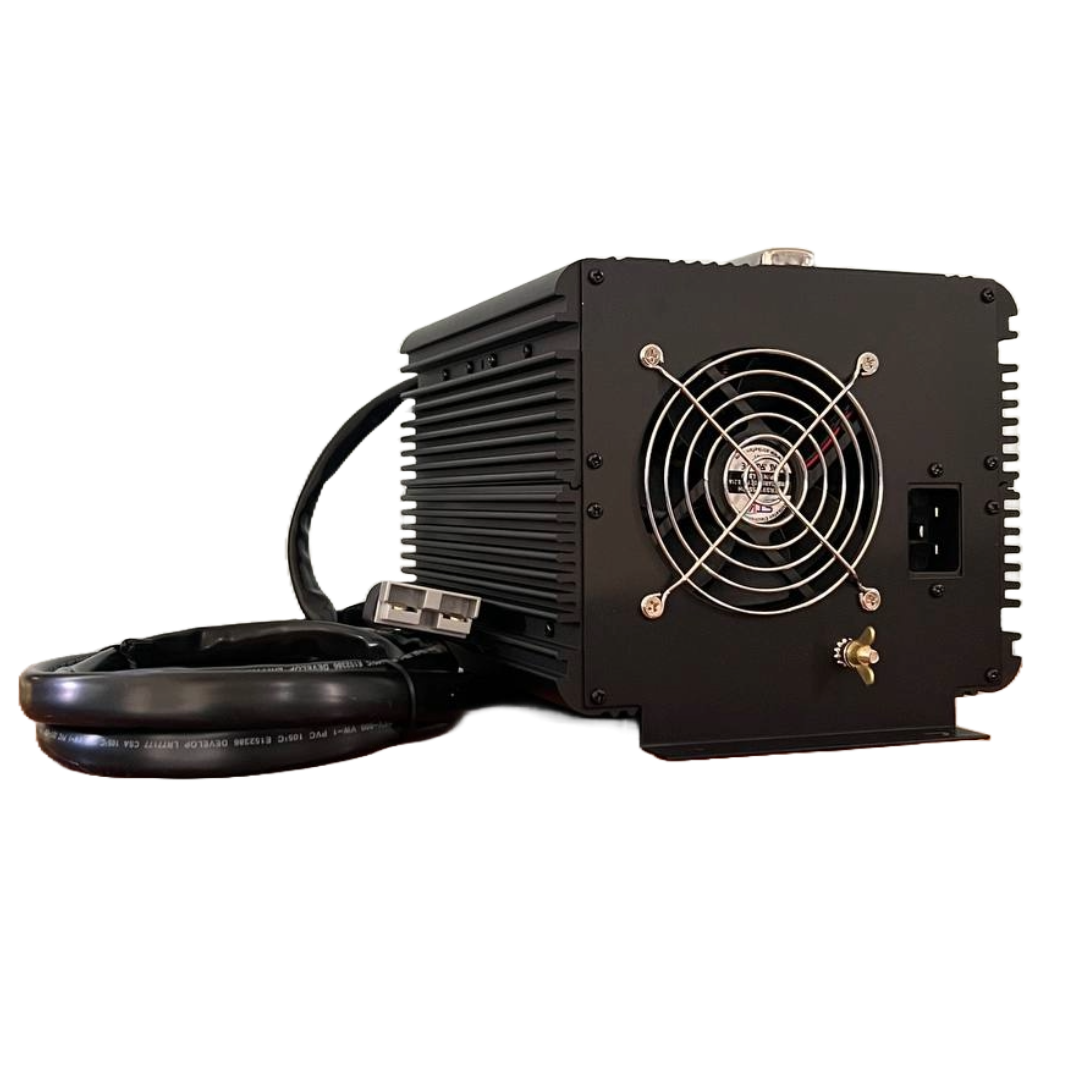

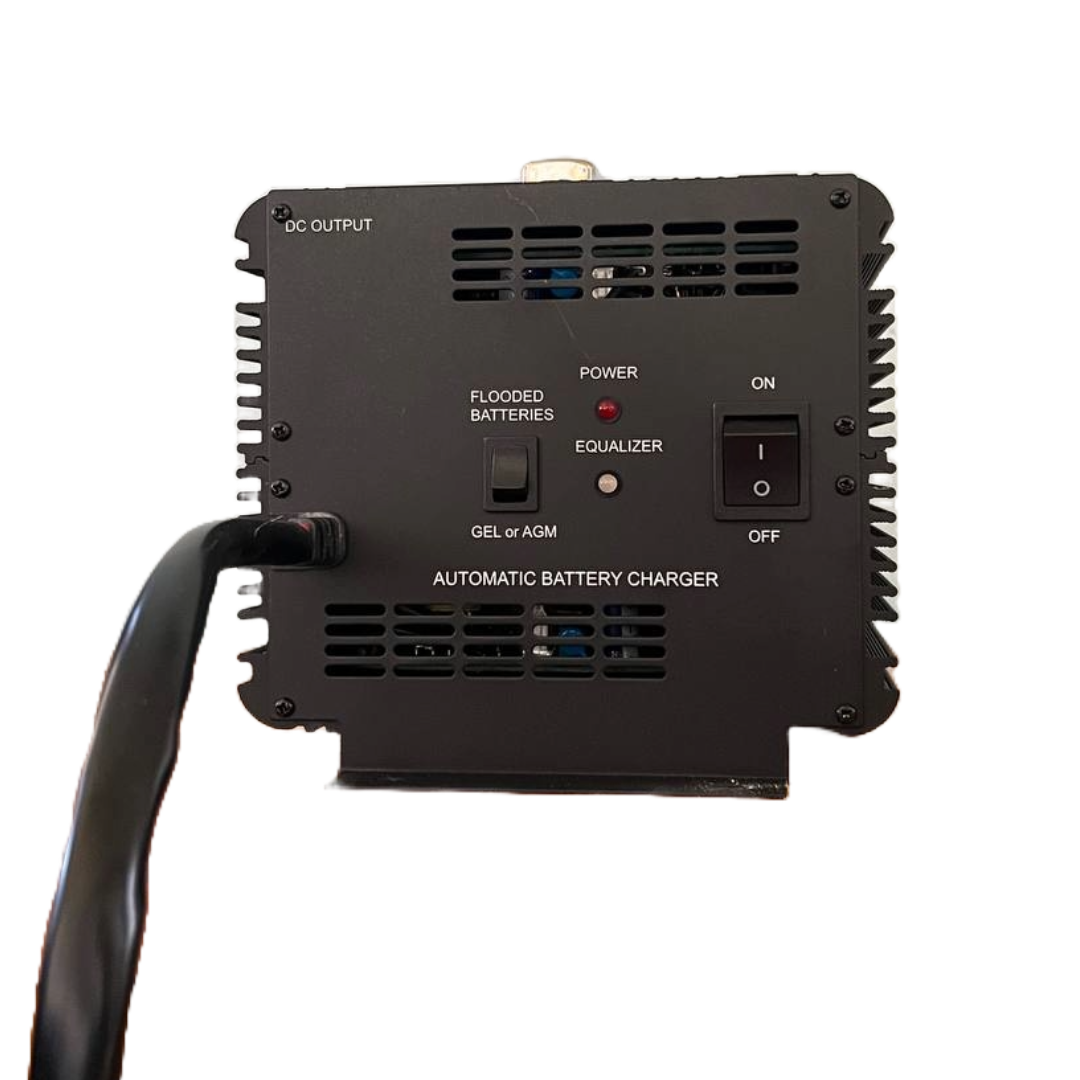

Aftermarket Karcher Windsor 86284090 | Offboard Charger | 36V | 20 AMPs | SB175 Connector Red and Grey
Aftermarket Karcher Windsor 86284090 | Offboard Charger | 36V | 20 AMPs | SB175 Connector Red and Grey
Aftermarket Karcher Windsor 86284090 | Offboard Charger | 36V | 20 AMPs | SB175 Connector Red and Grey
Aftermarket Karcher Windsor 86284090 | Offboard Charger | 36V | 20 AMPs | SB175 Connector Red and Grey

Aftermarket Karcher Windsor 86284090 | Offboard Charger | 36V | 20 AMPs | SB175 Connector Red and Grey

$519.00
Aftermarket Karcher Windsor 86284090
Machine Fitment

Chariot 3 iExtract DUO, Chariot iScrub 26 SP, Commodore DUO, Chariot 3 CV 86/1 Rs Bp, Chariot iGloss 20
Description
 Offboard charger comes out of the box with the SB175 red Anderson Connector pre-assembled, there is also a SB175 grey Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input
  • Input Voltage (auto-sensing): 115/230 VAC, 50/60 Hz
  • Input Current Max: 14 Amps
  • Single Phase
  • Input Receptacle: IEC C14
DC Output
  • Output Voltage - Nominal: 36 VDC
  • Output Voltage - Bulk / Cyclic: 44.6 VDC
  • Float Voltage: 43.2 VDC
  • Max DC Current: 20 Amps
  • Battery Type: Lead Acid: Standard, AGM, Gel
  • 3 Stage Charging Profile: CC/CV/Float
  • Load Sensing, Minimum Voltage: 12 Volts
Features
  • Cooling Fan
  • Reverse Polarity Protection
  • High Energy Efficiency (UEC, BC)
  • Voltage Limited
  • Current Limited
  • Over Voltage Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Final Float / Maintenance Mode
  • Aluminum Case
  • Mounting Flanges
  • On / Off Switch
  • DC Output Cord 8ft w/ Anderson SB175 Grey Connector
  • Two-year Limited Warranty
