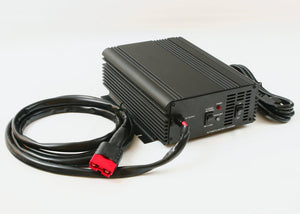

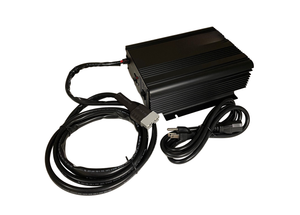

Aftermarket Tennant 9015391 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

Aftermarket Tennant 9015391 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

$479.00

Aftermarket Tennant 9015391
Machine Fitment	Tennant T500/T500e, Nobles Speed Scrub SS500, Tennant S880, Tennant T380, Tennant T2, Tennant T3, Tennant T300/T300e, Nobles SS3, Nobles SS300
Description	Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input	Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz Input Current Max: 11 Amps Single Phase Input Receptacle: IEC C14
DC Output	Output Voltage - Nominal: 24 VDC Output Voltage - Flooded: 29.7 VDC Output Voltage - AGM / Gel: 28.8 VDC Float Voltage: 26.5 VDC Max DC Current: 20 Amps Battery Type: Lead Acid, AGM, Gel 3 Stage Charging Profile: CC/CV/Float Load Sensing, Minimum Voltage: 8 Volts
Features	Charger Ships with 6 foot lead with SB 50 Connector Selectable Charging Profile: Flooded, AGM or GEL Low start voltage 4 volts Continuous 100% duty cycle Optimal 3 Step Charging Built-in Mode Indicators Demand Sensing Reverse Polarity Protection Over Voltage Protected Short Circuit Protection Overload Protection Thermal Protection 2 Year Warranty

Collections: Aftermarket, Aftermarket Parts, Aftermarket Replacement Parts: Tennant, Nilfisk Advance, Nobles, Viper, Aftermarket Tennant Parts, All, Floor Cleaning Equipment Parts | Shop Online, Floor Scrubber Battery Chargers - Premium Collection for All Models, Newest Products, Non-Equipment Items for Sale, OEM & Aftermarket Floor Machine Parts, Tennant, Tennant Parts | OEM and Aftermarket Replacement Parts, Tennant T2 Parts, Tennant T3 Parts, Tennant T300/T300e Parts, Tennant T380AMR Parts

Machine Fitment

Tennant T500/T500e
Nobles Speed Scrub SS500
Tennant S880
Tennant T380

Aftermarket Tennant 9015391

Machine Fitment

Tennant T500/T500e, Nobles Speed Scrub SS500, Tennant S880, Tennant T380, Tennant T2, Tennant T3, Tennant T300/T300e, Nobles SS3, Nobles SS300

Description

Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.

AC Input

Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz
Input Current Max: 11 Amps
Single Phase
Input Receptacle: IEC C14

DC Output

Output Voltage - Nominal: 24 VDC
Output Voltage - Flooded: 29.7 VDC
Output Voltage - AGM / Gel: 28.8 VDC
Float Voltage: 26.5 VDC
Max DC Current: 20 Amps
Battery Type: Lead Acid, AGM, Gel
3 Stage Charging Profile: CC/CV/Float
Load Sensing, Minimum Voltage: 8 Volts

Features

Charger Ships with 6 foot lead with SB 50 Connector
Selectable Charging Profile: Flooded, AGM or GEL
Low start voltage 4 volts
Continuous 100% duty cycle
Optimal 3 Step Charging

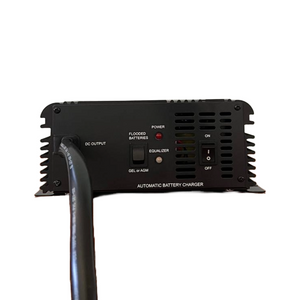

Built-in Mode Indicators
Demand Sensing
Reverse Polarity Protection
Over Voltage Protected
Short Circuit Protection
Overload Protection
Thermal Protection
2 Year Warranty
