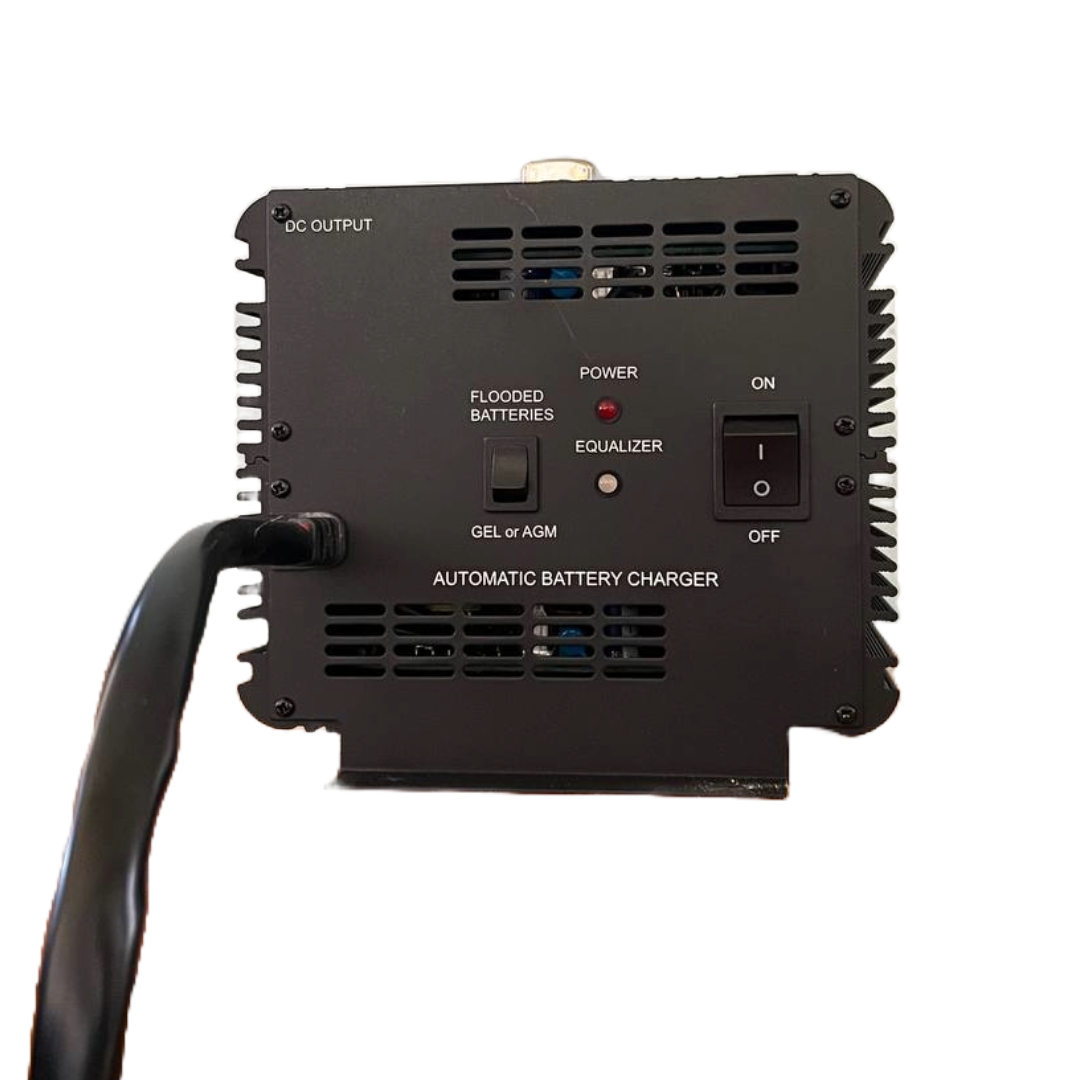

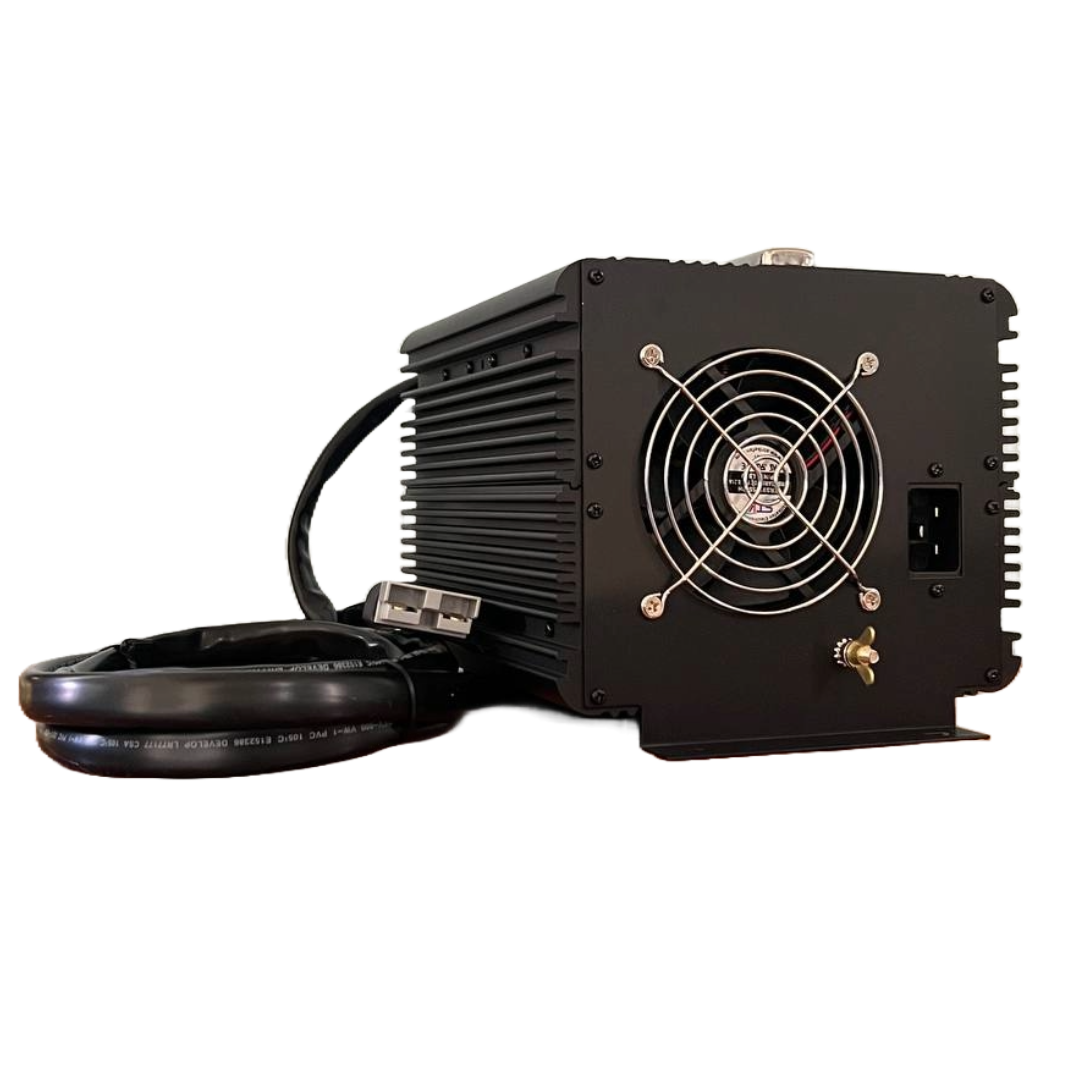

Aftermarket Karcher Windsor 9.110-197.0 | Offboard Charger | 36V | 20 AMPs | SB50 Connector Red and Grey

$519.00

Aftermarket A Karcher Windsor 9.110-197.0
Machine Fitment	Chariot iScrub 20, Chariot iScrub 20 Deluxe, Chariot iScrub 22 SP, Chariot iVac 24, Commodore DUO
Description	Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input	Input Voltage (auto-sensing): 115/230 VAC, 50/60 Hz Input Current Max: 14 Amps Single Phase Input Receptacle: IEC C14
DC Output	Output Voltage - Nominal: 36 VDC Output Voltage - Bulk / Cyclic: 44.6 VDC Float Voltage: 43.2 VDC Max DC Current: 20 Amps Battery Type: Lead Acid: Standard, AGM, Gel 3 Stage Charging Profile: CC/CV/Float Load Sensing, Minimum Voltage: 12 Volts
Features	Cooling Fan Reverse Polarity Protection High Energy Efficiency (UEC, BC) Voltage Limited Current Limited Over Voltage Protection Over Temperature Protection Short Circuit Protection Final Float / Maintenance Mode Aluminum Case Mounting Flanges On / Off Switch DC Output Cord 8ft w/ Anderson SB50 Grey Connector Two-year Limited Warranty

Machine Fitment

Aftermarket A Karcher Windsor 9.110-197.0

Machine Fitment

Chariot iScrub 20, Chariot iScrub 20 Deluxe, Chariot iScrub 22 SP, Chariot iVac 24, Commodore DUO

Description

Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.

AC Input

Input Voltage (auto-sensing): 115/230 VAC, 50/60 Hz
Input Current Max: 14 Amps
Single Phase
Input Receptacle: IEC C14

DC Output

Output Voltage - Nominal: 36 VDC
Output Voltage - Bulk / Cyclic: 44.6 VDC
Float Voltage: 43.2 VDC
Max DC Current: 20 Amps
Battery Type: Lead Acid: Standard, AGM, Gel
3 Stage Charging Profile: CC/CV/Float
Load Sensing, Minimum Voltage: 12 Volts

Features

Cooling Fan
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Final Float / Maintenance Mode
Aluminum Case
Mounting Flanges
On / Off Switch
DC Output Cord 8ft w/ Anderson SB50 Grey Connector
Two-year Limited Warranty
